Tera data parallel Transpecter[TPT]

Tera data parallel Transpecter[TPT]

Step1:

To work with TPT Java Run time should be install[JDK-6025 Java ER]

There are 2 ways to work  TPT

  1. Through wizard
  2. By writing script to execute like FL, ML Name: Script

Ex: 1st way



Wizard approach

To load the data from vinayaka database emp Table to vinay- USK emp empty table following the below steps

Start

 ↓

Right click

 ↓

New

Job Name: Vinayaka- vinay-emp-load

Next

Source type: Tera data Table

Tera data source:127.0.0.1

User name: Vinayaka

Pass work: vinay

Screenshot_16 Check include user ID in Generate Job

Screenshot_16Check include password in Generate Job

Screenshot_17



2Go to left hand side displayed data bases

Vinayaka2 Select emp

Select Right side emp columns2Click select all

Next

Select

Target type: Tera data table

Tera data host:127.0.0.1

User name: Vinayaka

Pass word: Vinay

Screenshot_16Check include user ID in Generate Job

Screenshot_16 Check include password in Generate Job

Screenshot_17



2Go to left hand side displayed data bases

Vinay- use2Select emp

Select  load operator



Select Automatic mapping

Next

Finish



Job name: Test- job

Commit interval:10000

Screenshot_17



New the Job runs, read the log message and observe the expected resultClick

Note - To see the script Generated, GO To Job script and see



2nd way

Coding

Define Job vinayaka- vinaya-load-job

(

Define operator w-1-0-vinayaka-vinay-load-job

Type load

Schema*

Attributes

(

Varchar User name,

Varchar  Password,

Varchar Log table,

Varchar Target Table

Varchar Td pid

);

Define schema w-o-s-Vinayaka –vinay—load- job

( eid int,

Ename varchar(30),

Mgrid int,

Deptid int,

);

Define operator w-o-c-Vinayaka –vinay—load- job

Type export

Schema w-o-s-Vinayaka –vinay—load- job

Attributes

(

Varchar User name,

Varchar  user Password,

Varchar Select stmt,

Varchar Td pid

);

Apply

(

Insert into vinay –usr.emp(eid, ename, mgrid, deptid) values(:eid,: ename, :mgrid, :deptid);

To operator

(

W-1-0- Vinayaka-vinay-load-Job[1]

Attributes

(

User name=’vinay -usr’,

User password=’vinay’;

Log table=’vinay’-usr. emp-Log’,

Target table=’vinay’-usr. Emp’,

Tdpid=’127.0.01’

)

)

Select * from operator

(w-o-o-Vinayaka –vinay—load- job[1]

Attributes

(

User name=’vinayaka’,

User password=’vinay’,

Sele CL Stmt=’Select eid,ename, mgrid, deptid from vinayaka .emp;’,

Tdpix=’127.0.0.1’

);



Execution -  Log file navigation2 c:\program files\Tera data\client\13.0\Tera data parallel transporter\logs

Start2Run2cmd

TBUILD – F C:\TPT\TPT-Sample.txt



TPT[Tera data parallel Transporter]



Screenshot_18



Fast load: File  2 Table

Mload: File      2 Table

Tpump: File   2  Table

Fast Export: Table 2 File

BTEQ: File  2 Table

Table2File                     Any operator in tera data

Table 2 File

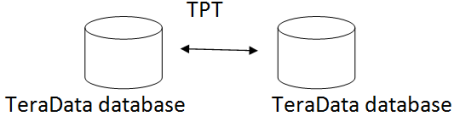

TPT IS A Multi function product for loading, Retrieving, processing and transforming data with in the tera data base and between external data base and the tera data data base



Screenshot_19

Screenshot_20
