Funnels in DataStage

Funnel

7It is a processing stage that supports n inputs and 1 output.

7Combining Source 1 and Source 1 with out any key dependency

Funnel requirements

  1. Structure of Source 1 and Source 2 should be same
  2. Column Names should be same in Source 1 and Source 2.

Funnel types

We have 3 Funnel types

  1. Continuous funnel 7 Random
  2. Sequence 7follows Linux order
  3. Sort funnel 7 based on key column values



Copy

It is having multi purpose

  • Makes Source to Multiple copies
  • Change the column Names
  • Drop the columns
  • used as Stub Stage.

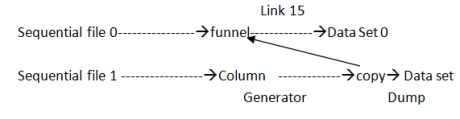

job :- funnel, copy Generator and copy:-

Screenshot_51

Sequential file 0

 ↓

Load

  ↓

E id             E Name      Add

11                   A             HYD

22                    E             SEC



Sequential file 1

E id         E Name    Gender         Sal                 Add

33              B                 1                 23000             HYD

22             C                  0                 22000               Del



Column   Generator

Column to Generate        = COUNTEY

Column to Generate        = COMPANY

Output

Do Mapping    (link 13)



Copy

output7Dump (link)à do Mapping

Now,7Output7Funnel  (link)7Do Mapping7Remove   DSlink 13.COMPANY / DSlink 13.COUNTRY7Go to  Columns7if any column Name changes has to be mode, do it here.

Funnel

7funnel Type = Continuous funnel7Output7Do Mapping

Output

Data set 0

E id E Name Add
33 B HYD
44 C DEL
11 A HYD
22 E SEC





E id E Name Gender Sal Add Country Company
33 B 1 23000 HYD aaa aaa
44 C 0 22000 DEL bbb Bbb



Data set

2.Job:-  (Not Applicable)

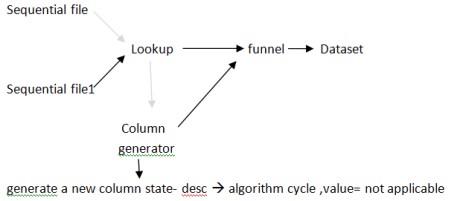

Screenshot_52



Sequential file 1

Load primary.txt

Sequential file 0

Load ref.txt

In both  primary.txt and ref.txt   7Columns 7  State

look up

àMap State 7Drag and Drop Required Columns7Go to Constraints7Set reject



Column Generator

Column to Generate      = STATE – DESC7OutputàDo Mapping7Columns7Right click on STATE – DESC7Algorithm = Cycle7Value   = not applicable7Apply7Close

7Compile And RUN

output

Data set 0

E id E Name State Status State – desc
11 SUMAN AP 1001 Andhra Pradesh
22 MOON TN 1000 Tamil Nadu
33 SUMAN AP 1111 Andhra Pradesh
55 SUMAN AP 1101 Andhra Pradesh
66 MOON JK 1001 Jammu Kashmer
77 MOONSUN AP 1011 Andhra Pradesh
E id E Name State Status State – desc
44 MOONSTAR NN 1011 Not Applicable
88 MOON MP 1111 Not Applicable



Data set 1

Screenshot_53



Output

E id E Name State Status State – desc
11 SUMAN AP 1001 Andhra Pradesh
22 MOON TN 1000 Tamil Nadu
33 SUMAN AP 1111 Andhra Pradesh
55 SUMAN AP 1101 Andhra Pradesh
66 MOON JK 1001 Jammu Kashmer
77 MOONSUN AP 1011 Andhra Pradesh
44 MOON STAR NN 1011 Not Applicable
88 MOON MP 1111 Not Applicable
These core tutorials will help you to learn
the fundamentals of DataStage.
For an in-depth understanding and practical experience,
explore Online DataStageTraining.

Conditions

7While using look up, We Can Write the conditions in Constraints

That is Generally when we take 2 sequential files

1.primary and 1 reference file, we can Write Conditions for only primary file

Constraints

Link Name               Condition           Condition Not Met                   Lookup failure

Ref                                                                              Drop                                      Drop

Right click 7Input column   7primary

  • If we need to write Conditions for reference file then, take 3 Sequential files
  • That is 1 primary , reference file , reference file i



  1. job
  1. Job :- (Not Applicable)

Screenshot_54



 Sequential file  0

         Load primary.txt 7columns 7 state



Sequential file 1

Load ref.txt  7 columns7state



Sequential file 2

Load rfe2.txt 7 columns 7 state



Ref2

Status Status- desc
1001 Married
1000 Divorced
1111 Single



Look up

7Drag State from primary to ref

7Drag Status from primary to ref 1

7Now, Drag and Drop required Columns7Click on Constraints



Link Name condition Condition Not met Look up failure
  1. ref
Drop Drop
2.ref1 Drop Drop



Right click7Input Column 7ref 7ref . State –desc  = “Andhra  Pradesh”

7Now, Compile And RUN



Output

E id E Name State Status State – desc
11 SUMAN AP 1001 Andhra Pradesh Married
33 SUMAN Ap 1111 Andhra Pradesh Single
